Quick Prince DP3 1500W 24V Anchor Winch - 10mm Chain

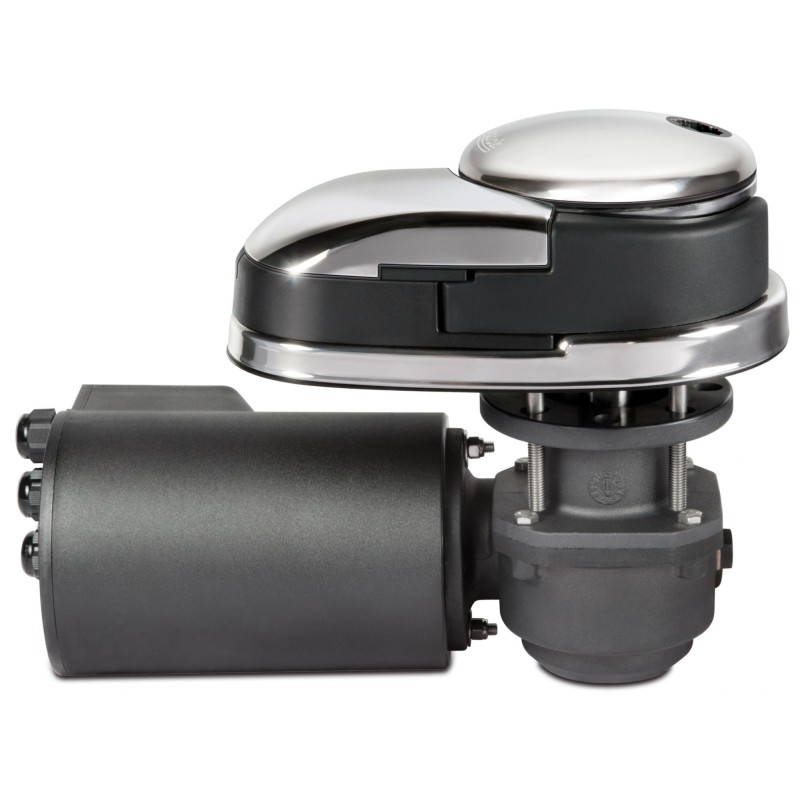

Quick Prince DP3 1500W Vertical Anchor Winch
Enhance your anchoring experience with the Quick Prince DP3 1500W Vertical Anchor Winch, masterfully crafted for marine reliability. This durable winch features top-grade bronze and stainless steel components, ensuring longevity and performance in demanding marine environments. The system is equipped with a chain counter sensor and a manual free-fall mechanism for added convenience during operation. It also includes an emergency manual lift feature and a pressure lever for heightened safety.

Key Features:

• Constructed from 316 stainless steel with a built-in chain tube.
• Chain counter sensor on the gypsy allows for accurate chain management.
• Supplied with a relay box and gypsy, drum optional.
• IP67 waterproof motor guarantees dependable operation in harsh conditions.

Specifications for Prince DP3 1524 - Gypsy Only:

• Ideal for boats measuring 12m to 15m (39-49 feet).
• Drum not included.
• Powerful 1500W motor.
• Operates on 24V power supply.
• Maximum pull capacity of 1100 kg.
• Maximum working load reaches 540 kg.
• Standard working load of 180 kg.
• Chain speed at working load of 19 m/min.
• Current draw at working load: 85 A.
• Recommended cover thickness: 30-50 mm.
• Total weight: 20.4 kg.
• Gypsy compatible with 10 mm chain.

Invest in the Quick Prince DP3 for dependable, state-of-the-art anchoring equipment, giving you peace of mind while on the water.
