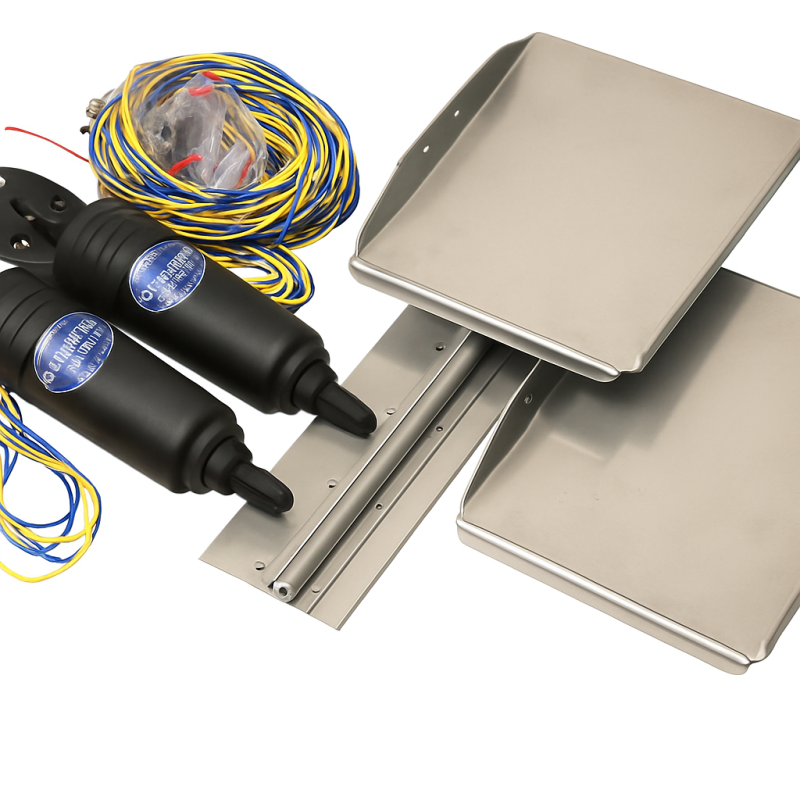

Bennett Trim Tab Kit 12" x 12"

BOLT1212 – 12" x 12" Electric Trim Tab Kit

This comprehensive Bennett trim tab kit operates on 12V and comes equipped with two actuators and two stainless steel trim tabs. Perfectly suited for vessels measuring between 5.8 and 7.3 meters. Please note that the control panel is sold separately.

Key Features:

• Exceptional durability of electric trim tab systems
• Lifetime warranty on electric actuators for peace of mind
• Waterproof design guarantees smooth operation for years
• Sturdy construction built for long-lasting use
• Easy and quick installation process
• Diverse options for control, trim tab sizes, and mounting

Product Specifications:

• Vertical space required at the stern:
  • Fixed upper hinge (BEA2000): 13"
  • Adjustable upper hinge (BEA3000): 6.39"
• Travel: 2.5"
• Length: 13.25"
• Voltage: 12V
• Connectors: Deutsch, Series DT, 13A
• Working Forces:
  • Actuation force: 750 lb.
  • Return force: 750 lb.
• Current consumption:
  • Actuators: 20 amperes max current
  • Steering control: 20 amperes max current
  • Control unit / Relay module: 20 amperes max current
• Included Components:
  • (2) Stainless steel trim tabs and mounting plates
  • (2) 20-foot harnesses with waterproof connectors (BAW2020)
  • (2) 12-volt actuators with 6-foot harnesses and waterproof connectors (BEA2000 or BEA3000)

This trim tab kit is an excellent choice to enhance your boat's performance and ensure a smooth, enjoyable ride.
