Bowman DC50-XAA Marine Oil Heat Exchanger

Bowman DC50-XAA Marine Oil Heat Exchanger

The Bowman DC50-XAA tubular oil heat exchanger is specifically crafted for exceptional performance, serving as both an engine oil cooler and a transmission oil cooler. Its durable design and dependable functionality are crucial for improving the efficiency of your onboard machinery.

Key Features

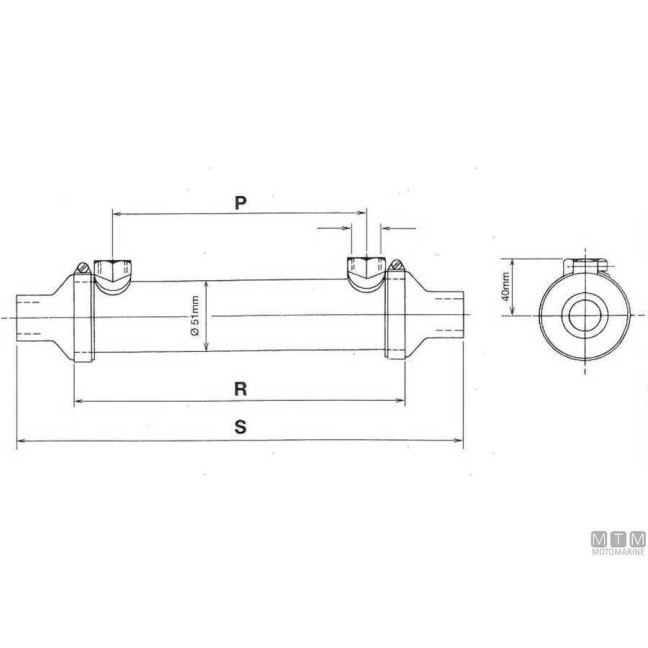

• Length: 210mm (including end caps), 125mm (excluding end caps)
• Max Operating Temperature: 125°C
• Maximum Working Pressure: Oil - 30 bar, Water - 2 bar
• Origin: United Kingdom
• Suitable for Gearboxes: Up to 100HP - 75kW

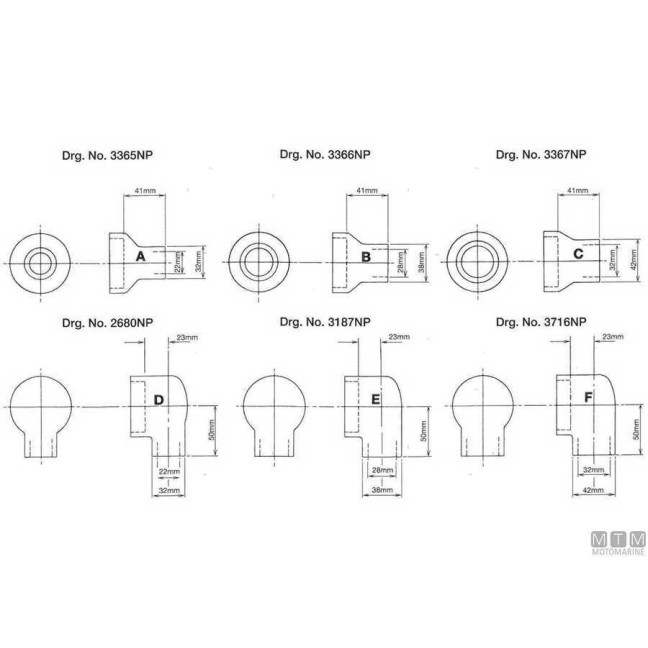

• Connections: Oil: 3/8" BSP female, Raw Water: 22mm via neoprene end caps
• Diameter: 51mm
• Maximum Horsepower Capacity: 40HP (30kW)
• Internal Oil Volume: 80ml
• Internal Water Volume: 160ml
• Max Pressures: Oil - 435 PSI (30 Bar), Water - 29 PSI (2 Bar)
• Model: DC50
• Max Raw Water Flow Rate: 60 LPM

This top-quality marine heat exchanger is designed to provide efficient cooling of engine oil and transmission fluid, even under the most demanding operational conditions. The Bowman DC50-XAA excels in applications that require effective heat management.

Boost the durability and performance of your machinery with the Bowman DC50-XAA heat exchanger. Trust in a premier solution for all your cooling requirements.
