Bowman DC90-YAA Oil Heat Exchanger

Bowman DC90-YAA Tubular Oil Heat Exchanger

The Bowman DC90-YAA tubular oil heat exchanger is engineered for optimal engine and gearbox oil cooling efficiency. It is compatible with various engines, including:

• BMC Leyland 498 (3.81)
• BMC Leyland 698 (5.71)
• Ford FSD-425-2401E
• Mercedes OM617

This unit is a perfect substitute for the Thornycroft 54382296 oil cooler, assuring smooth operation and dependable performance.

Key Features

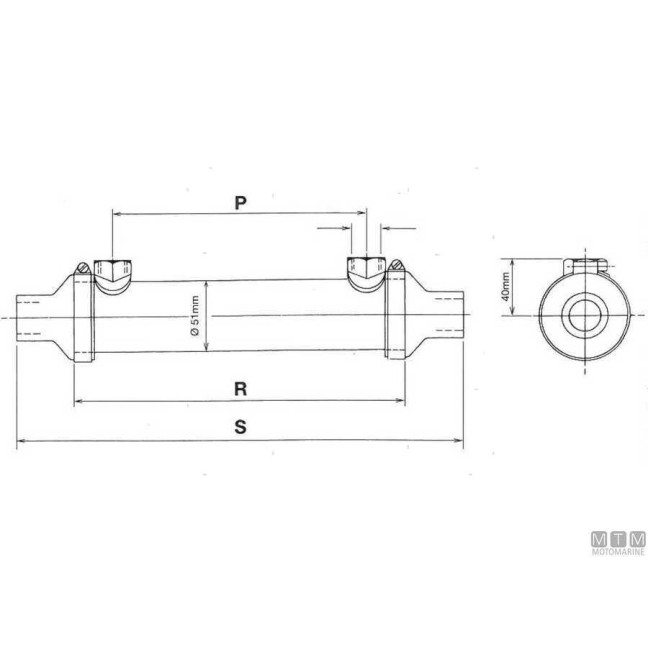

• Length: 314mm (with end caps), 235mm (without end caps)
• Operating Temperature: Up to 125°C
• Made By: Bowman
• Country of Origin: United Kingdom
• Compatible Gearboxes: Ideal for transmissions up to 200HP - 150kw
• Connections: Oil: 1/2" BSP female, Raw water: 22mm via neoprene caps
• Maximum Power Capacity: 80HP (60kw)
• Internal Oil Volume: 160ml
• Internal Water Volume: 240ml
• Maximum Working Pressure: Oil: 30 Bar, Water: 2 Bar
• Model: DC90
• Maximum Raw Water Flow: 60 LPM
• Replaces: Thornycroft 54382296
• Compatibility: BMC Leyland 4/98 (3.81), 6/98 (5.71), Ford FSD425 & 2401E, Mercedes OM617.

Enhance your engine's cooling performance with the Bowman DC90-YAA. Designed for reliability and efficiency, it's an essential component for optimal operation and longevity of your marine machinery.
