Quick Rider R1 500W 12V Low Profile Windlass - 6mm Chain

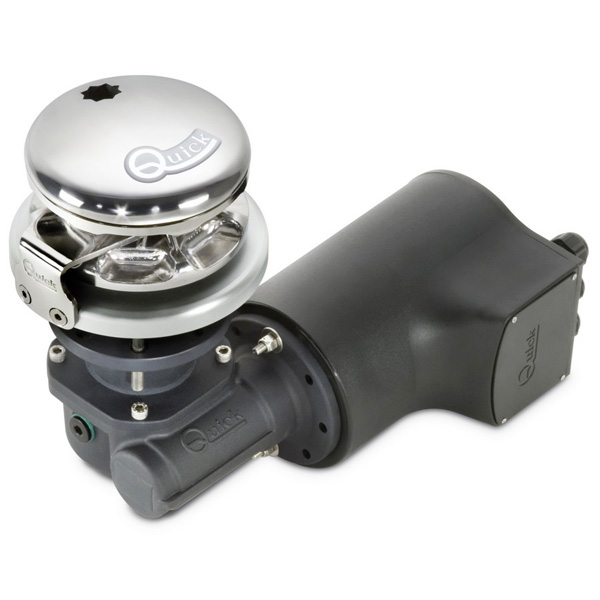

Introducing the Quick Rider R1 512 Vertical Windlass

Experience dependable anchoring with the Quick Rider R1 512 Vertical Windlass, expertly designed from premium bronze and stainless steel materials to ensure outstanding durability in marine environments.

Engineered for simplicity, this windlass is equipped with a chain counter sensor and a convenient free-fall manual release, making it ideal for both seasoned sailors and those new to boating.

The robust anodized aluminum base alongside an IP67-rated waterproof motor guarantees resilience in challenging marine conditions.

This windlass allows for flexible installation in either vertical or horizontal positions and can even fit snugly within a chain locker thanks to its compatibility without a chain pipe.

Key Features:

• Anodized aluminum base for durability
• Stainless steel drum (AISI 316) for added strength
• Rope/chain gypsy with integrated chain counter sensor (for motors 700 W and above)
• Includes a relay box and gypsy option (available with or without a drum)
• IP66 waterproof motor for secure operation

The Quick Rider R1 512 Gypsy is designed for boats measuring from 5 to 7 meters (16 to 23 feet), offering versatile functionality across various vessel sizes.

Specifications:

• Drum: No
• Motor Power: 500 W
• Input Voltage: 12 V
• Maximum Pull: 660 kg
• Maximum Working Load: 200 kg
• Working Load: 65 kg
• Chain Speed at Working Load: 18.5 m/min
• Current Draw at Working Load: 80 A
• Cover Thickness: 20-30 mm
• Weight: 7.4 kg
• Gypsy Size: 6 mm

This windlass harmoniously blends quality with functionality, making it a superb choice for boating enthusiasts seeking reliability and ease while navigating the waters.
