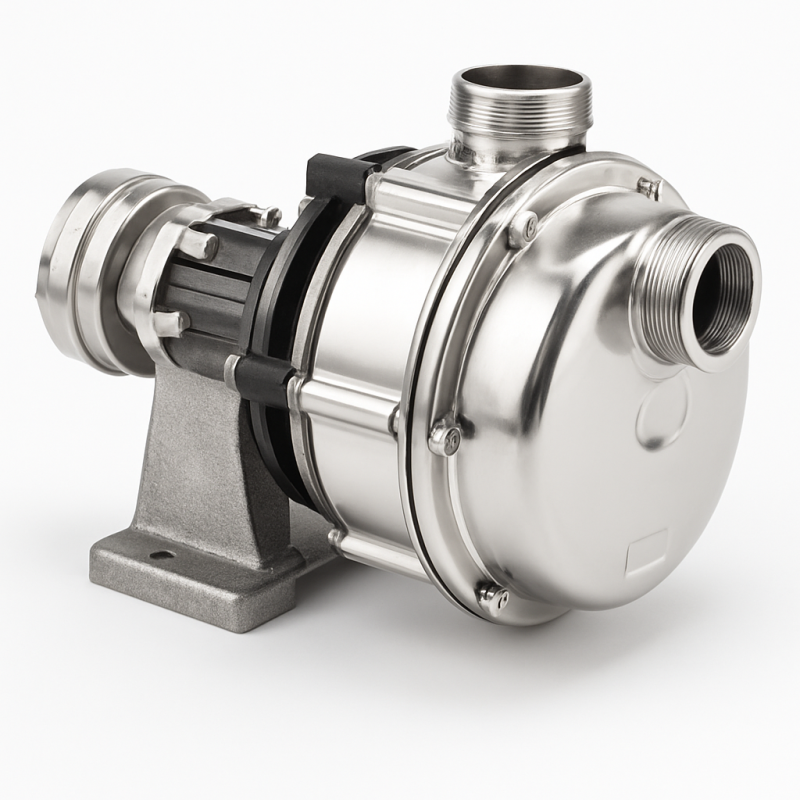

Tellarini IFE 30-24 Electromagnetic Clutch Pump

Discover the Tellarini IFE 30-24 Electromagnetic Clutch Pump, designed to deliver exceptional performance for your marine applications. This pump features a durable brass impeller and a stainless steel shaft, powered by an electromagnetic clutch to ensure smooth operation. With a maximum speed of 2900 RPM and an impressive lift capacity of up to 65 meters at 1400 RPM, it is perfect for a variety of liquid transfer needs.

Whether you're working in freshwater or saltwater environments, this self-priming pump guarantees reliable suction and transfer, even when liquid supply is limited. The reversible flow capability adds to its versatility and efficiency.

Constructed from robust CB754S brass and equipped with a stainless steel shaft, the Tellarini IFE series comes complete with a support and pulley for effortless motor connection. The strategic placement of the electromagnetic clutch enables remote control of the pump's operation, allowing for convenient on/off switching.

Applications Suitable For:

• Nautical Use: Bilge pumping, cooling systems, washing, and seawater applications.
• Agricultural Needs: Suitable for pesticides, fertilizers, hydraulic components, and irrigation systems.
• Transport Solutions: Ideal for tanker trucks, road machinery, and onboard water transfer.

Hydraulic Insights:

• Flow Capacity: 166 litres per minute
• Maximum Lift Height: 65 metres
• Shaft Seal: Yes included
• Self-Priming Height: 6 metres
• Port Size: 1"½
• Liquid Density Limit: 1.1 g/cm³ (particle-free)
• Temperature Resistance: Up to 90°C

Please note, this pump is not suitable for corrosive liquids that may compromise the materials and seals. It should not be used for transporting gasoline, solvents, or in hazardous environments prone to fire and explosion.

Features such as reversible pumping capacity and included brass hose fittings for 30 mm pipes (one straight and one elbow) enhance operation, allowing it to function for brief periods even with closed pipes. Ensure the pump is filled during installation; this step is not needed afterwards.

Technical Overview:

• Connection Method: Pulley 2A148 compatible.
• Clutch System: 12V DC electromagnetic clutch allows for remote pump control.

Construction Materials:

• Body Parts: Crafted from brass
• Shaft Composition: AISI 304 stainless steel
• Impeller Material: Brass
• Sealing Material: NBR

Pump Dimensions:

• Port Size: 1"½
• Hose Fitting Size: 30 mm
• Self-Priming Ability: Up to 6 m
• Flow Rate Max: 166 litres per minute
• Lift Max: 65 m
• Overall Size: Width: 304 mm, Length: 158 mm, Height: 180 mm, Weight: 11.3 kg
